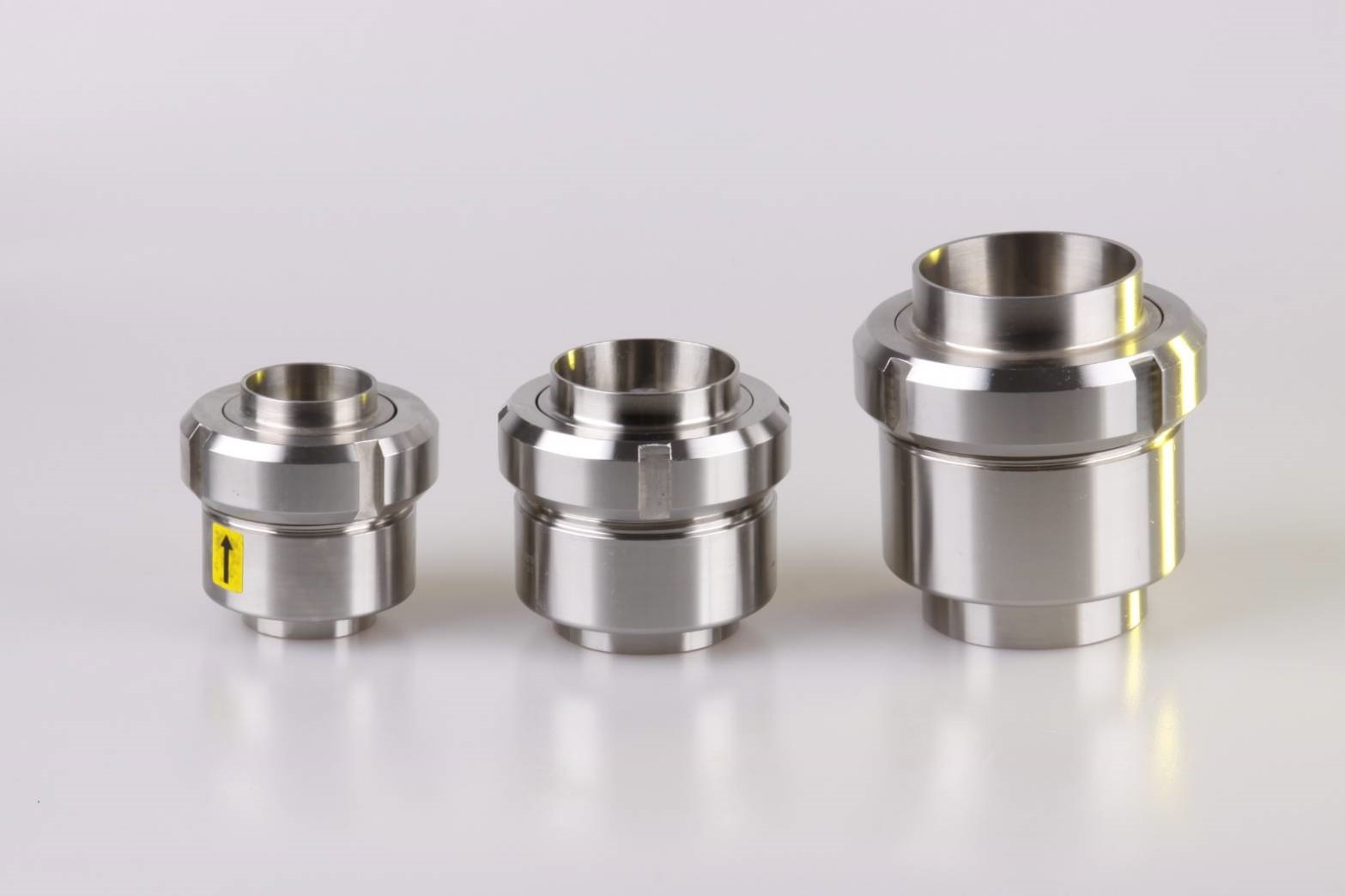

Sanitary Check Valve

Stainless Steel Hygienic - Clamp NRV Check Valve

• Vertical type

• Aseptic , Non retention dead angle

• Operating temperature: -10 degree ถึง 120 degree

• Valve disc : casting

• Valve body : forging

• Valve body type: clamped

• Gasket: EPDM, Silicone

• FDA approved gasket

• Max. Pressure: 10BAR

• Min. Pressure:0.2BAR

• Connection end: Weld , Tri-clamp

• Standard: DIN, SMS, 3A

• Material: SS316L

• Inside surface finish: Ra 0.4 μm

• Size: DN20-DN100 ,  3/4"-4"
