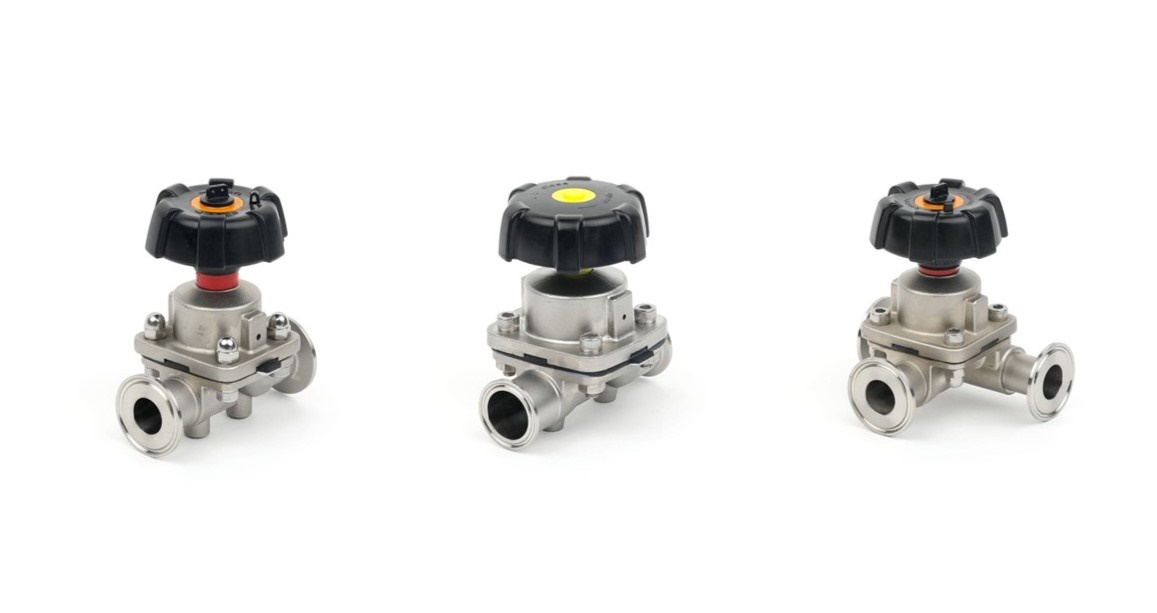

Sanitary Diaphragm Valve

Sanitary Diaphragm Valve

Applications :

• Valve body type: Two way / three way, U type / T type , mirror type / sand blasting type

• Fully-draining itself

• no retention angle

• Forged valve body

• Material quality (contact part) : SS 316L

• Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE separate membrane

• Max. Pressure: 10bar

• Max. Temperature: -10 ~ +120 degree

• Inside surface finish: Ra 0.4

• Standard: DIN, SMS

• Connection: welded, clamped,

• Mini type: DN6, DN8, DN10

• Medium type: DN15-DN50

• Large type: DN65, DN80, DN100
